Konarak Hospital Project
Beyond Engineering: Crisis Management and Execution Resilience in Remote Regions
Executing the mechanical room for Konarak Hospital in the southern reaches of Sistan and Baluchestan was far more than a technical challenge; it was a relentless battle against logistical, climatic, and infrastructural constraints. In a region where the nearest industrial supplier was hundreds of kilometers away and shortages of electricity or potable water threatened the timeline daily, a "design error" meant a "total project standstill."
By implementing BIM (Building Information Modeling) methodology, we simulated the entire process in a virtual environment before a single pipe was even shipped to the site. This approach allowed us to generate a precise Bill of Quantities (MTO) and eliminate clashes during the design phase, reducing the need for re-purchasing or waiting for tools to zero. In reality, BIM was not just a modeling tool for this project; it was our strategic lifeline to overcome complex financial bureaucracies and harsh weather conditions. It ensured that the project’s limited capital was invested with maximum efficiency to build a hospital that the local community desperately relied upon.
3D Design
Complete modeling of the engine room with Revit software and utilizing BIM system for high accuracy
Executive Supervision
Full-time supervision of project execution from start to final handover with continuous quality control
Team Coordination
Managing communication between design, execution, and client teams to ensure objectives are met

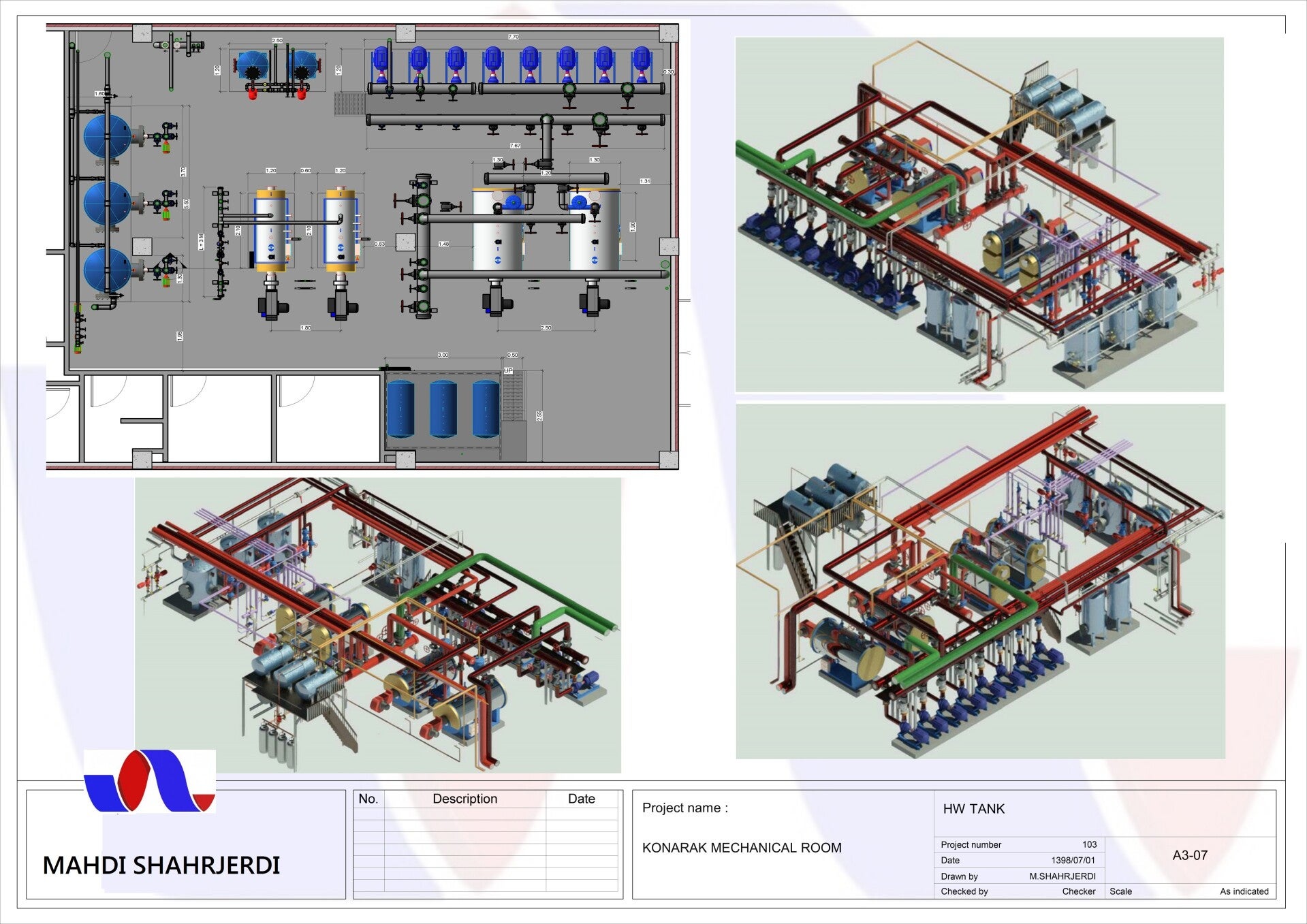

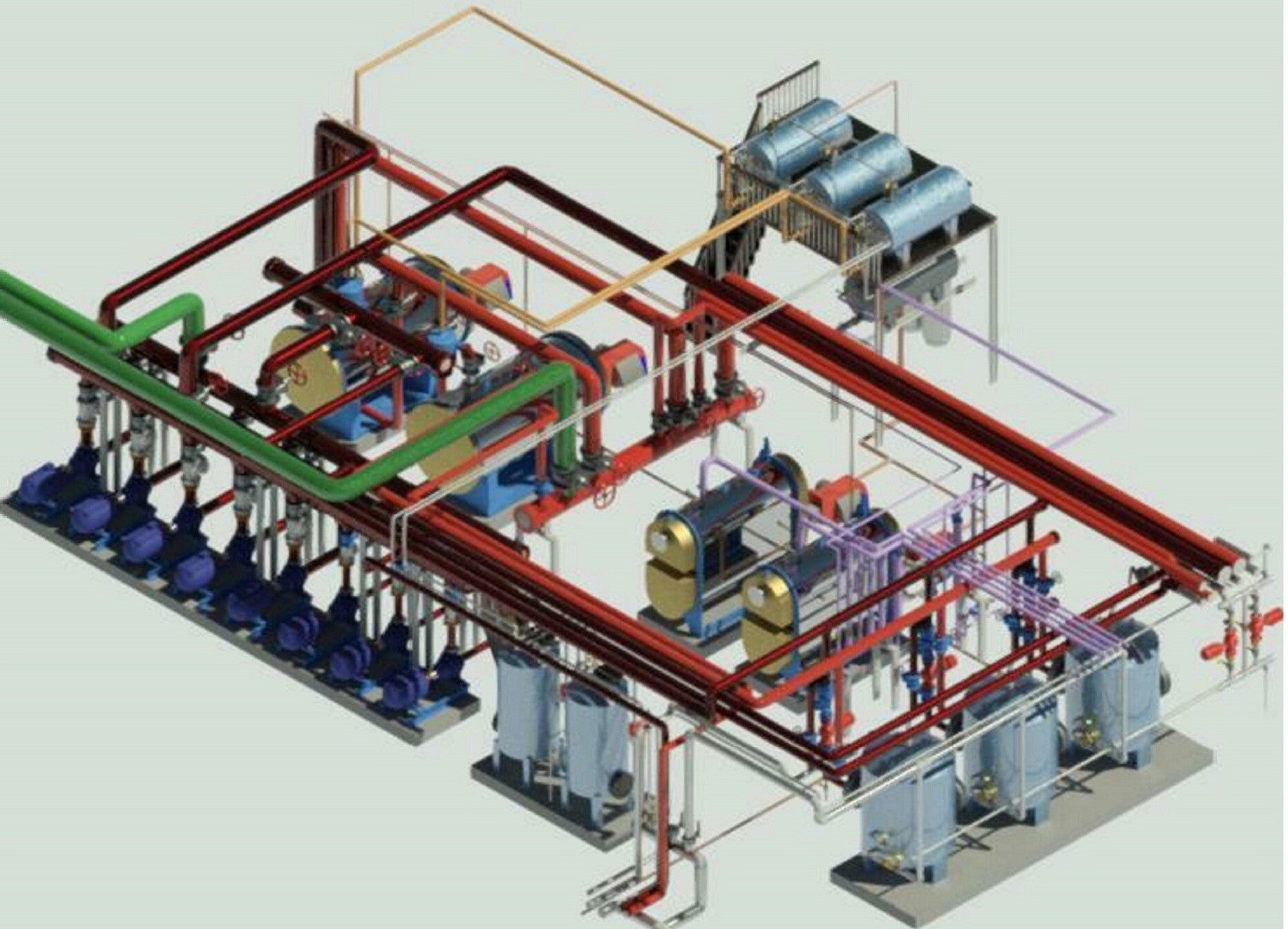

Isometric View of Central Utilities
This isometric render provides a comprehensive view of the integration of strategic mechanical equipment, including boilers, water softeners, and storage tanks. Intelligent modeling in Revit MEP allowed for precise spatial analysis and optimization of complex piping routes, ensuring that all components were installed with maximum technical coordination and minimal error during the execution of the Konarak Hospital project.

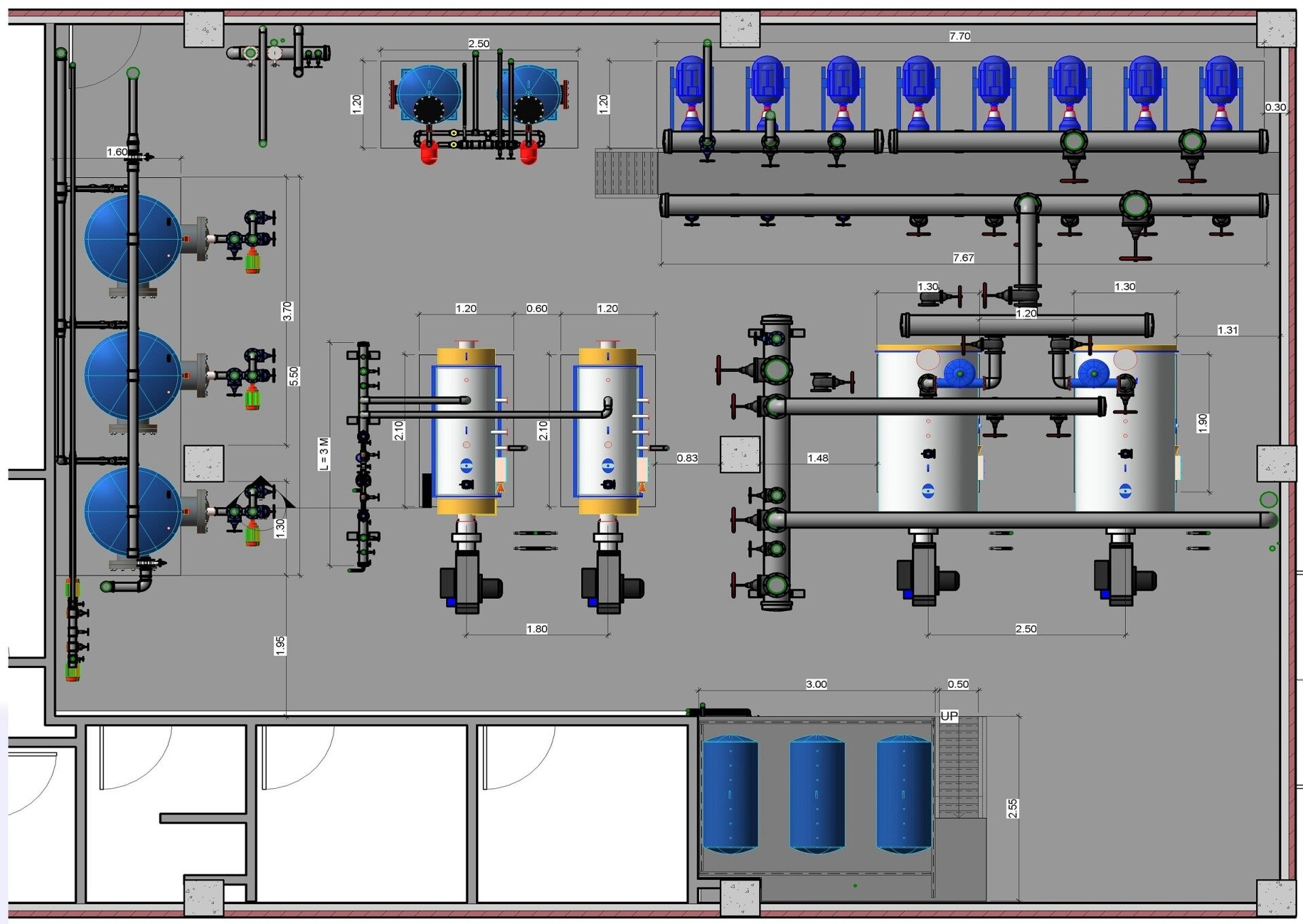

2D Layout & Equipment Arrangement
This image showcases the detailed 2D plan and engineering layout of the mechanical room equipment, modeled with millimeter precision in Revit MEP. The design incorporates maintenance access, piping route optimization, and accurate placement of boilers, pumps, and tanks to ensure flawless execution for the Konarak Hospital project.

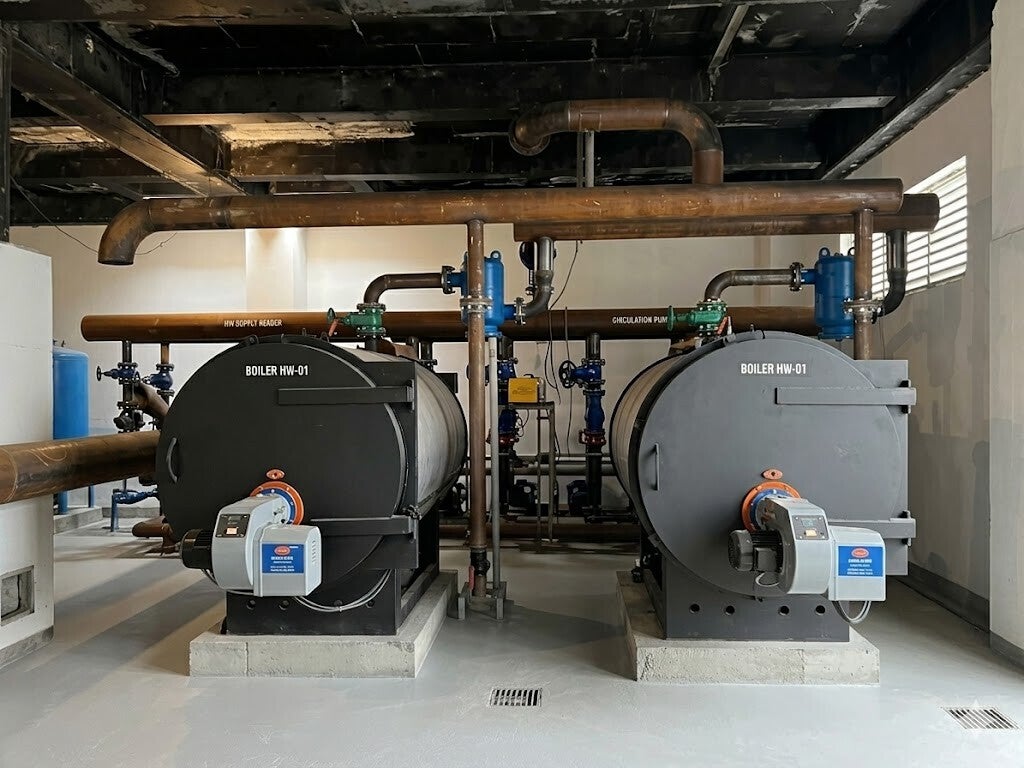

Seamless Execution: Hot Water Boiler Installation
This image showcases the final, professional installation of the hot water boilers for the Konarak Hospital project, executed with direct supervision to strictly match the Revit MEP modeling. Despite common site execution challenges, all components—including burners, foundations, and piping routes—have been installed with precise alignment and engineering discipline. This ensures that, alongside technical efficiency, the highest standards of aesthetics and ease of maintenance are fully realized in the project's delivery.

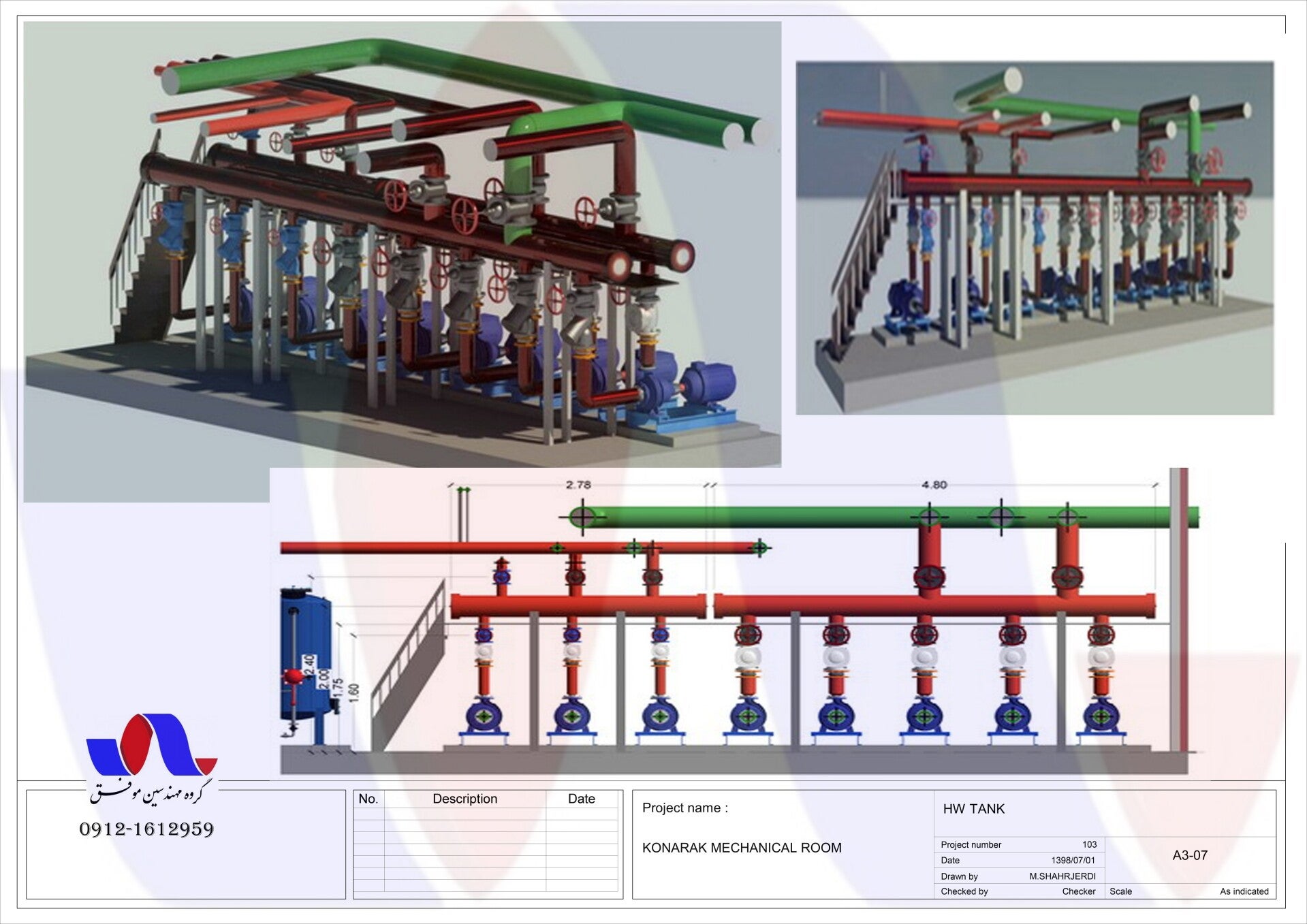

3D Modeling & Manifold Executive Details
This image highlights the precise 3D modeling of manifolds and circulation pumps, designed using advanced Revit MEP capabilities. The perfect alignment between the digital model and 2D technical drawings enabled effective clash detection, resulting in the execution of a piping system that meets the highest engineering standards for the Konarak Hospital project.

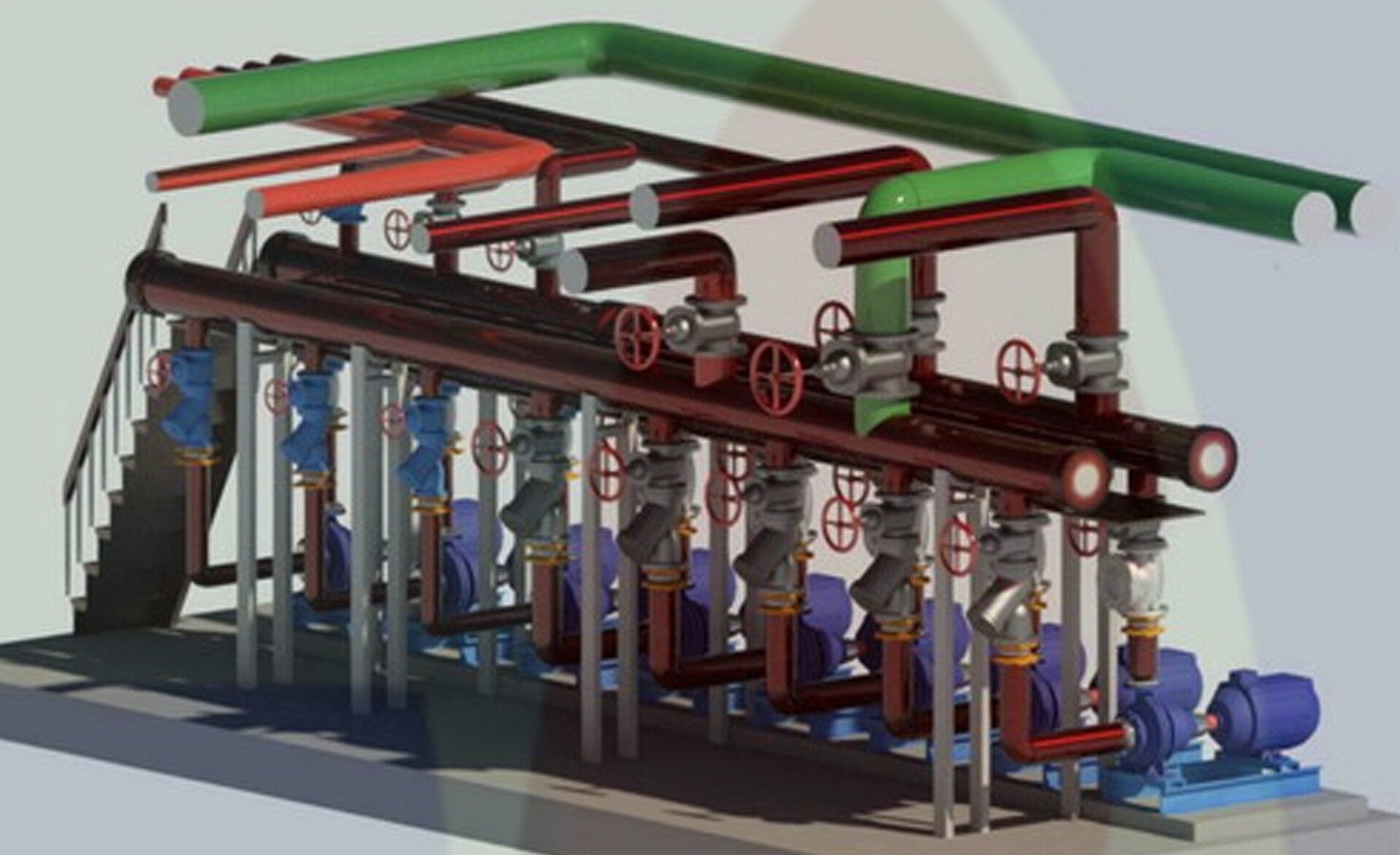

Manifold Executive
This 3D render displays the detailed and engineered design of the mechanical room piping system and manifolds, developed using Revit MEP software. The use of a specific color standard for supply and return pipes (green and red), the high-precision positioning of control valves and pumps, and the modeling of various components like the access stairs, demonstrate professionalism and complete design coordination, prepared for rigorous execution supervision in the Konarak Hospital project.

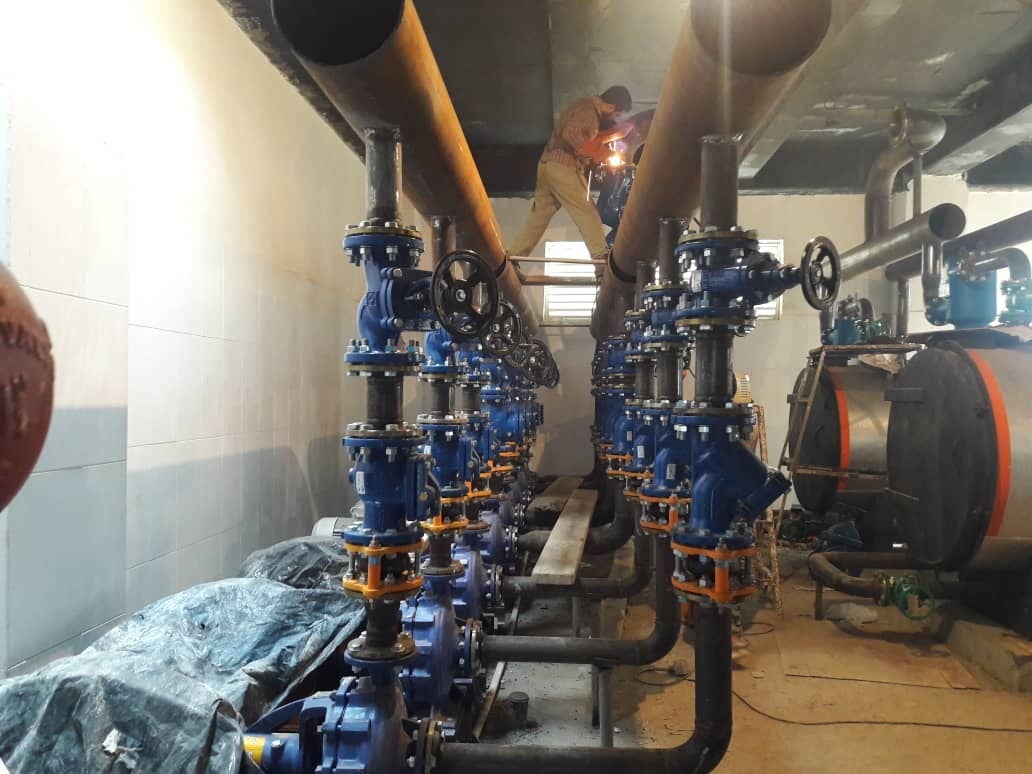

(From Modeling to Execution: Installation of Circulation Pumps
This image captures the welding and precise installation of the circulation pumps within the actual Konarak Hospital mechanical room. As envisioned in the Revit MEP 3D renders, the main manifolds have been installed at the exact designed elevations, with pumps mounted on their dedicated foundations and vibration isolators. Continuous supervision of the valve assembly and piping alignment ensures that the physical output perfectly matches the engineering model, guaranteeing the hydraulic system's optimal performance.

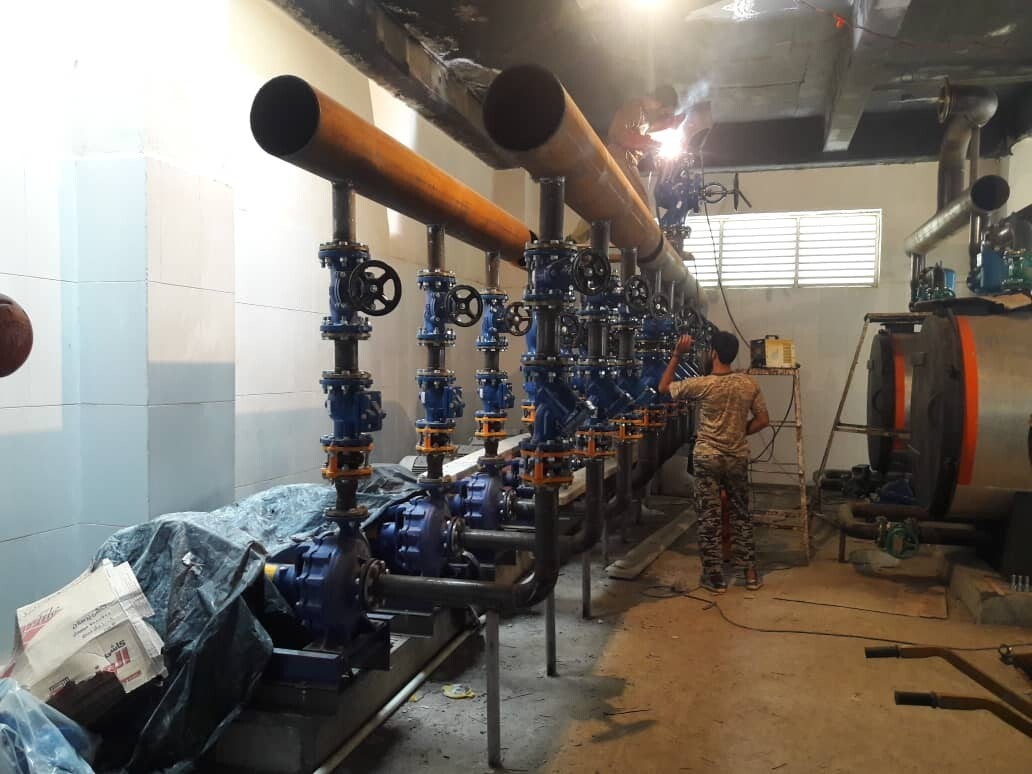

Fusion of Engineering Expertise and Aesthetic Design in Pumping Systems
This image clearly demonstrates the rigorous supervision and perfect alignment of the executive teams with the original design model. Despite the variations in pump models and capacities, the precise maintenance of horizontal manifold levels, the perfect alignment of control valves, and the orderly arrangement of connections have created a unified, standardized visual across the entire assembly. This level of organizational discipline in execution reflects both a deep understanding of hydraulic system behavior and the aesthetic touch of an engineer in managing industrial spaces, ensuring that even the most complex sections of the Konarak Hospital mechanical room are delivered with high standards and excellent operational access.

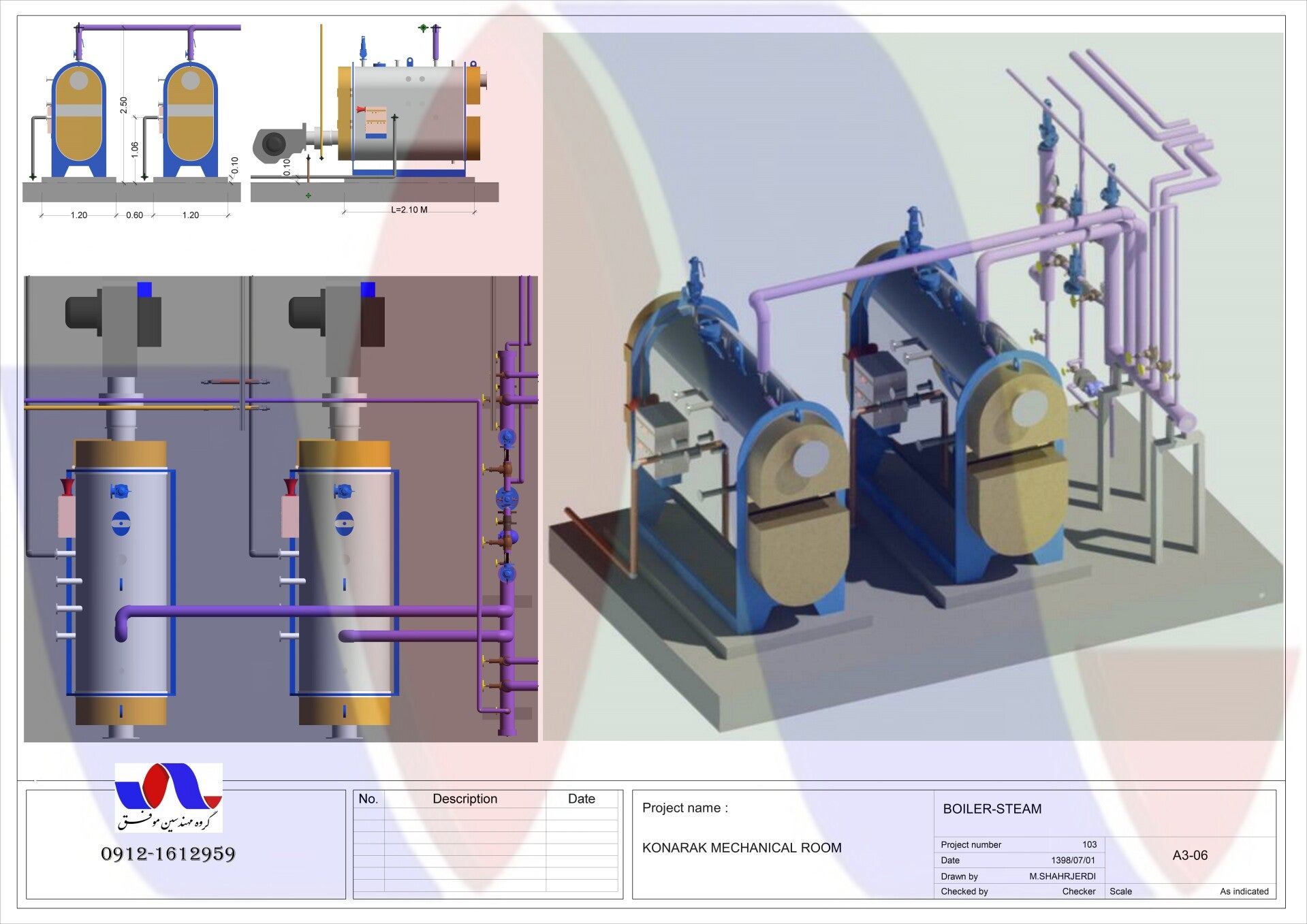

Technical Details & Steam Boiler Modeling
This engineering sheet combines 3D renders and technical section views of the steam boiler system for the Konarak Hospital project. Precise dimensional modeling in Revit MEP, from foundations to steam piping connections, allows for high-accuracy verification of all executive details—including burner installation heights and steam manifold routing—prior to construction, playing a key role in quality supervision and final project handover.

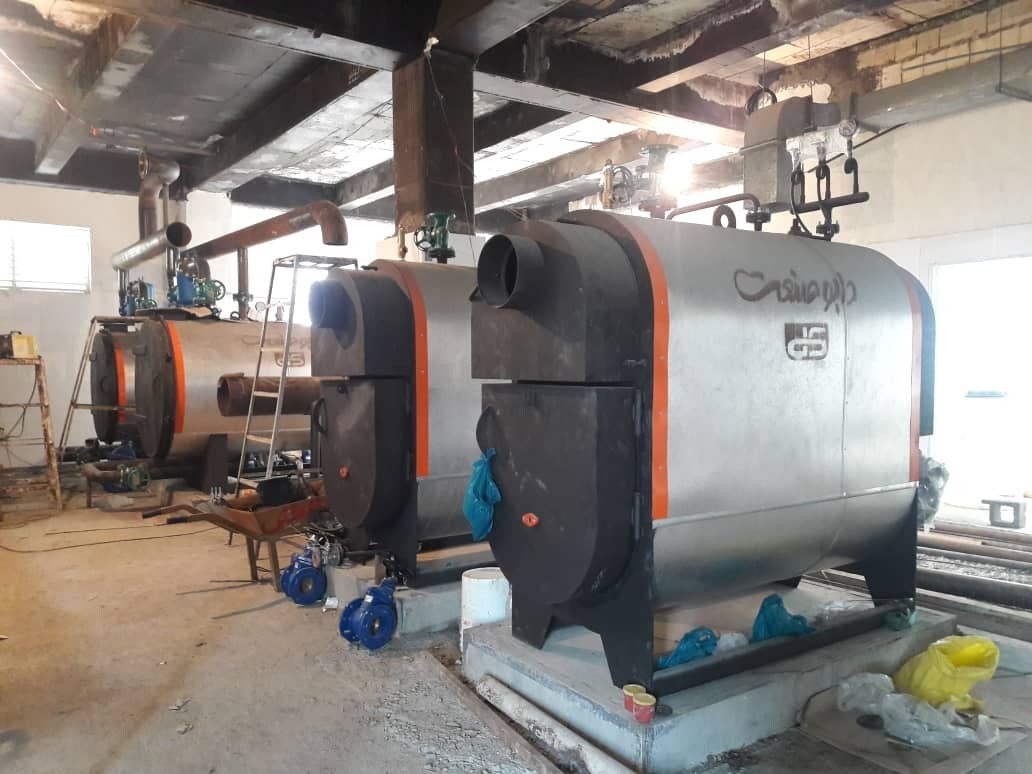

Physical Execution vs. Digital Twin
This image documents the final execution phase of the steam boilers within the Konarak Hospital mechanical room. As shown, the physical placement of the boilers, foundations, and interconnected piping strictly adheres to the Revit MEP design sheets with 100% accuracy. This perfect alignment between the "3D Model" and "Executive Reality" is the result of precise BIM-based project management, which eliminated human error, optimized spatial utilization, and ensured the seamless delivery of the utility systems.

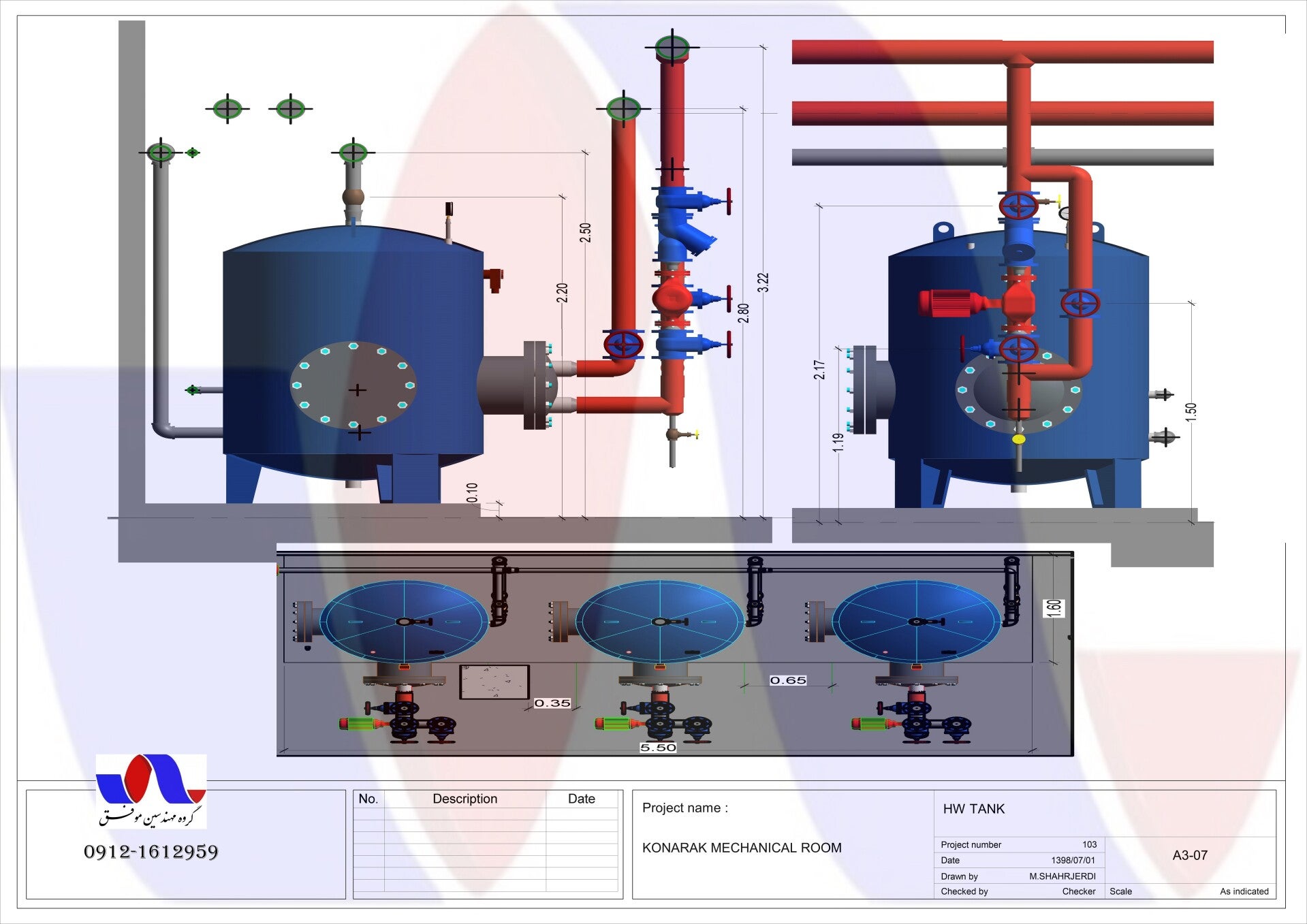

HW Tank Shop Drawings & Executive Details
This technical document features shop drawings and installation details for the hot water (HW) tanks at the Konarak Hospital project, modeled with high precision in front, side, and plan views. Extracting accurate piping elevations, manhole dimensions, and the positioning of sensors and safety valves within the Revit MEP environment guaranteed speed and accuracy during fabrication and installation, preventing any spatial conflicts within the mechanical room.

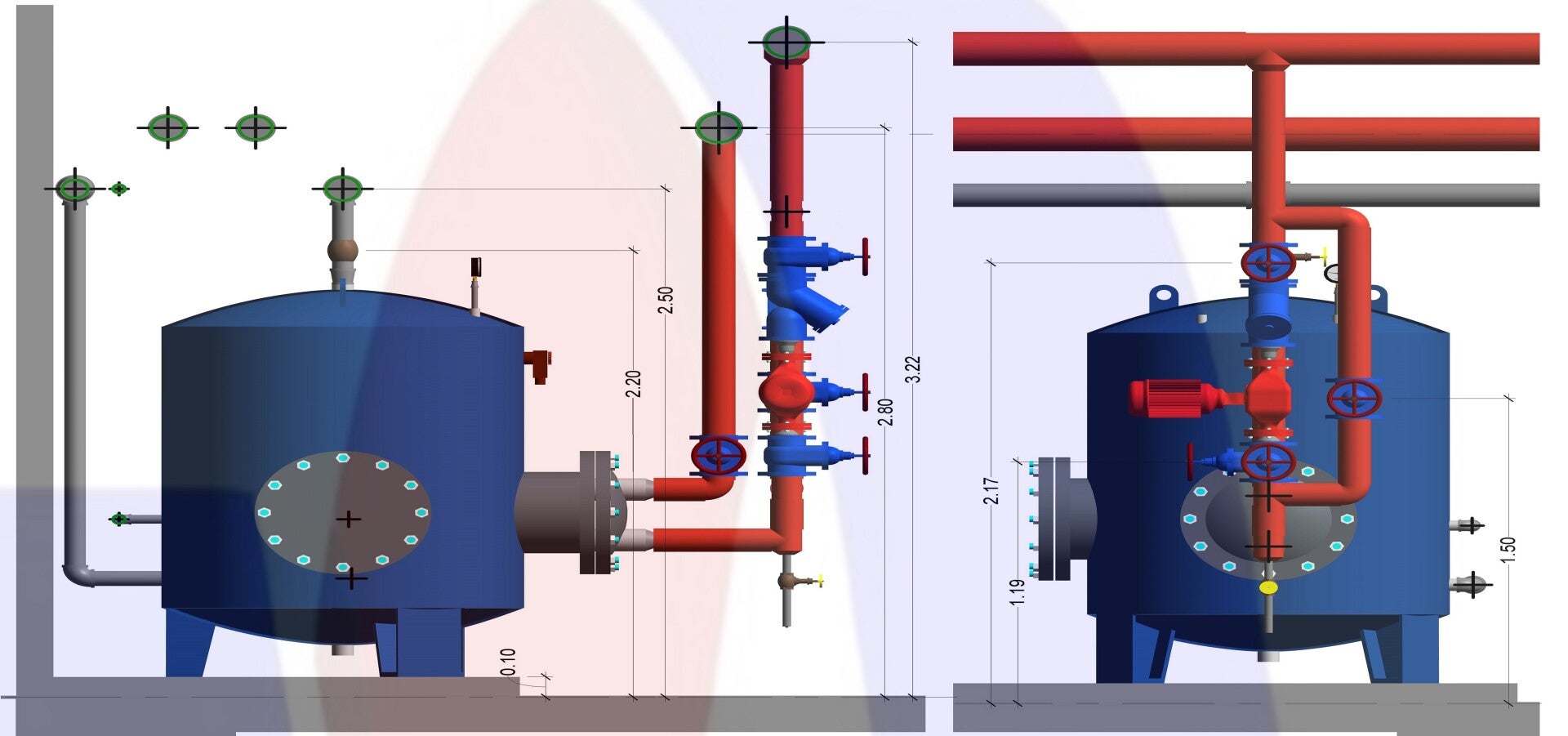

Dimensional Analysis & Coil Tank Connection Details
This image focuses on the precise connection details and elevation levels of the coiled tanks at the Konarak Hospital project. Within the Revit MEP modeling, all connection points—including inlet/outlet pipes, control valves, and pressure gauges—have been aligned with technical standards. This level of detail in vertical dimensioning is a critical prerequisite for rigorous execution supervision, ensuring the heat transfer system within the mechanical room functions correctly.

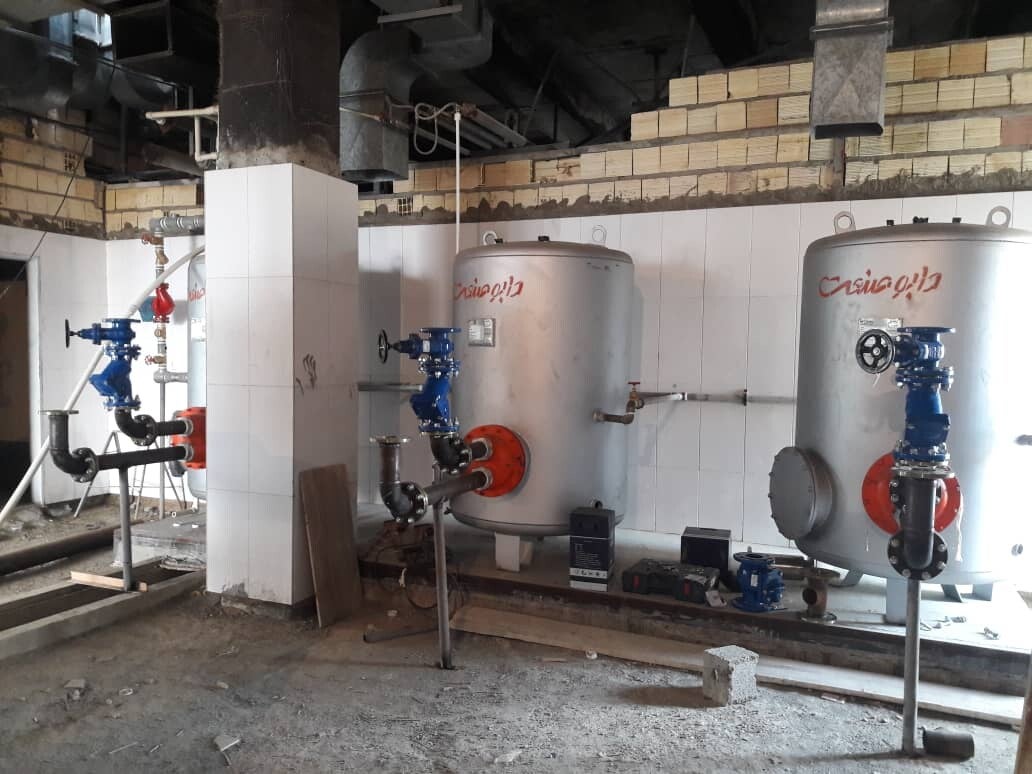

Execution of Domestic Hot Water Generation & Storage System
This image showcases the installation phase of the domestic hot water (DHW) storage tanks within the Konarak Hospital mechanical room. These coiled tanks have been positioned on their concrete plinths exactly according to the elevations and layouts specified in the Revit MEP model. The connection inlet/outlet piping and the installation of control valves have been executed with high precision to ensure maximum heat exchange and pressure stability throughout the hospital's sanitary hot water network.

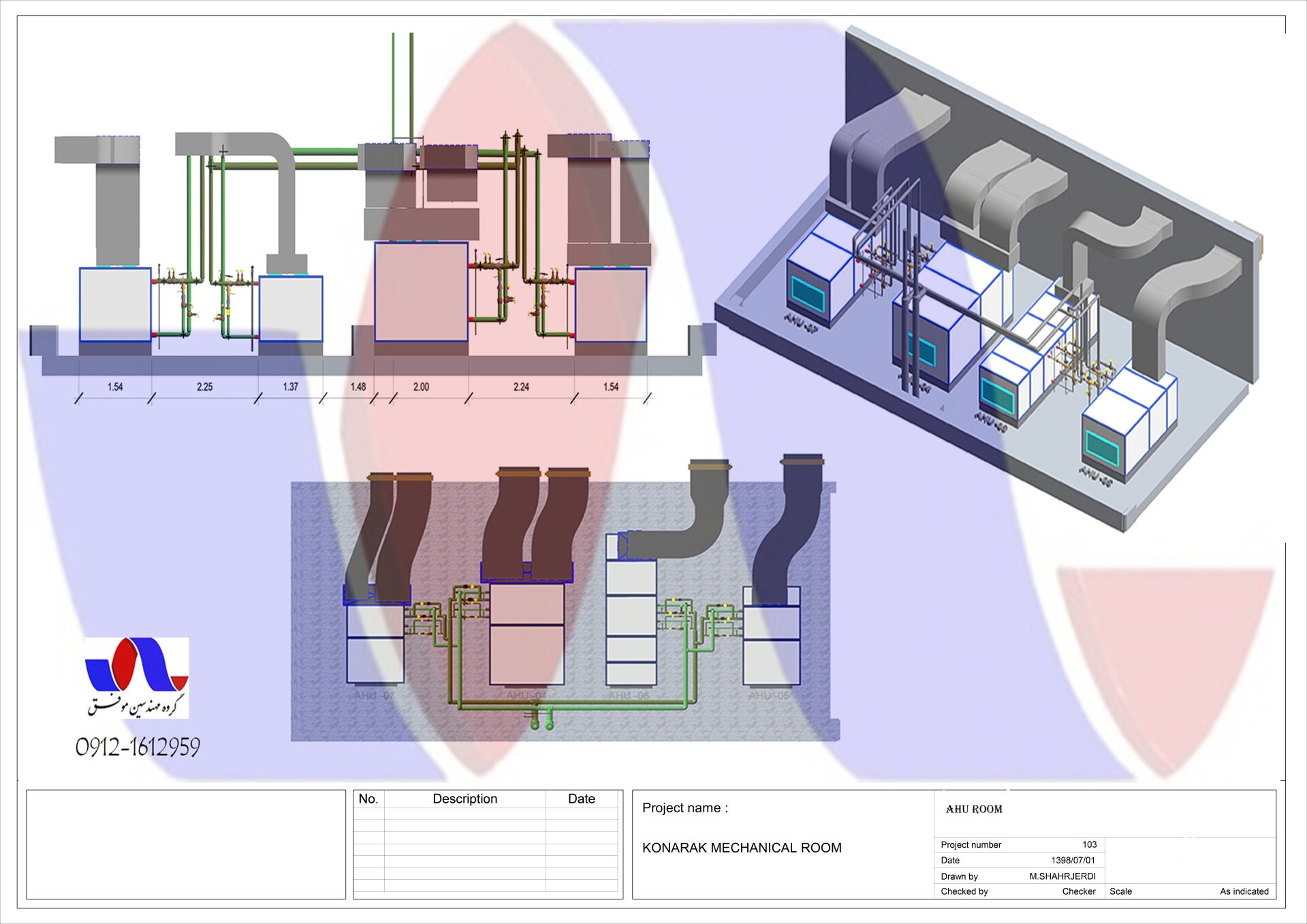

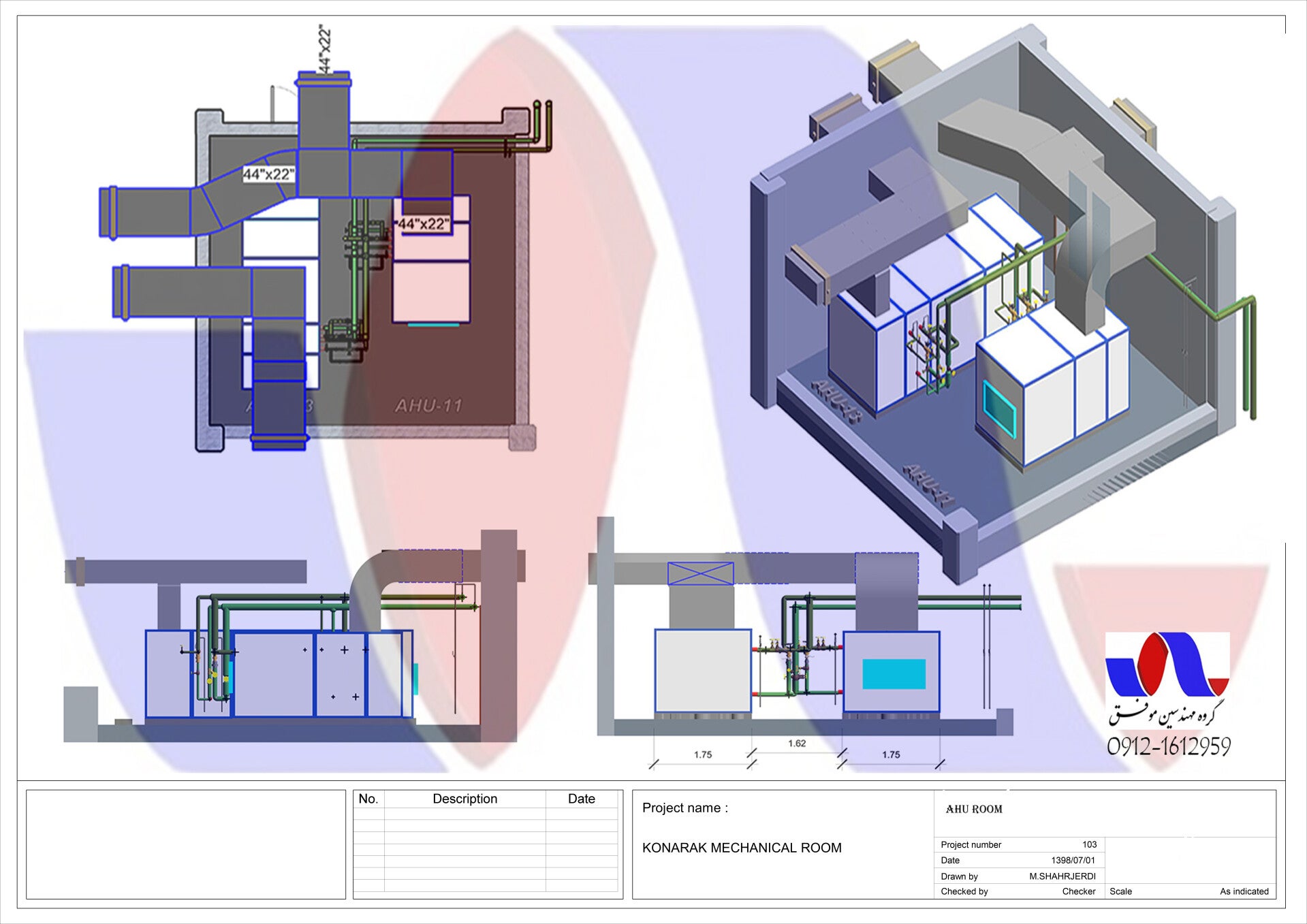

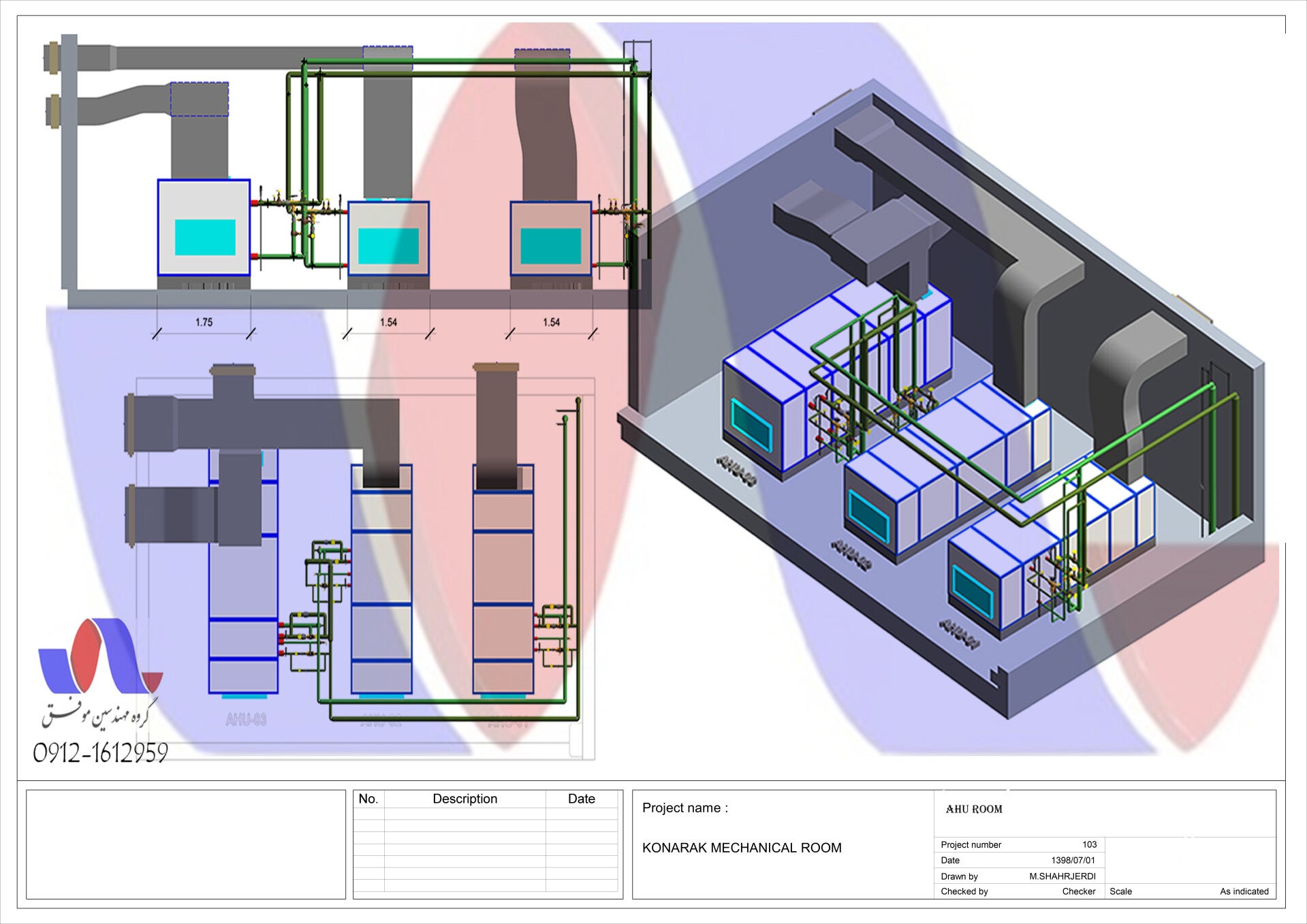

AHU Room Design & Layout
This technical sheet illustrates the comprehensive modeling and layout of Air Handling Units (AHUs) for the Konarak Hospital project. The precise design of supply/return ductwork and coil piping within Revit MEP has not only optimized spatial utilization but also guaranteed necessary maintenance access. The seamless coordination between mechanical and architectural disciplines in this model resulted in the flawless execution of the HVAC system and standardized air distribution throughout the medical facility.
Hygienic Full-Fresh AHU Modeling
This engineering sheet showcases the layout and ducting details of specialized Hygienic Full-Fresh Air Handling Units, designed exclusively for the operating theaters of the Konarak Hospital project. In the Revit MEP model, all stringent requirements for filtration, air exchange rates, and isolated duct paths have been strictly incorporated. This precise design provides the necessary framework for supervising sensitive health standards and delivering a professional-grade HVAC system for critical medical environments.
Ductwork Optimization in Confined Spaces
This technical sheet demonstrates the resolution of one of the most complex design challenges in the Konarak Hospital project: positioning hygienic AHUs within a highly confined space crowded with transit ducts. Intelligent modeling in Revit MEP allowed for a high-finesse design where, despite spatial constraints, all necessary access for periodic inspections and future maintenance is perfectly maintained. This precision in design ensures the stable performance of the ventilation system even within the most restrictive physical environments.

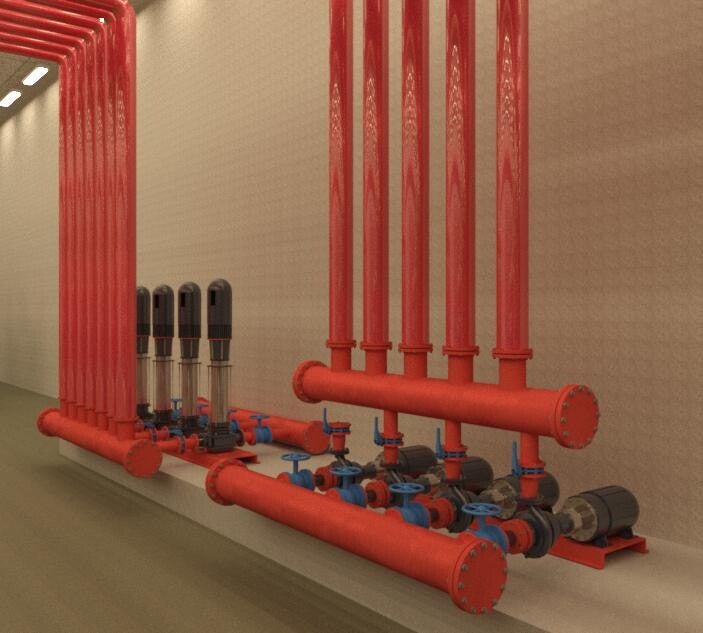

Firefighting Booster Pump Design & Modeling
This professional render showcases the precise modeling of the firefighting system for the Konarak Hospital project, featuring two separate booster pump sets from the renowned Grundfos brand. The first set is designed for the sprinkler network, while the second serves the fire box lines. The modeling incorporates a combination of vertical multi-stage pumps and end-suction ground pumps to achieve optimal flow and pressure. All manifold details and connections have been meticulously executed in Revit MEP to ensure high-accuracy engineering coordination.
Mastering Communication
Transforming BIM into a Unified Language for Execution Excellence
In the challenging Konarak project, my mission transcended beyond drafting; I firmly believe that BIM Technology is first and foremost a Communication Tool.
By leveraging my deep expertise in Revit MEP, I broke down "Information Silos" and replaced them with a dynamic, unified system.
This systemic approach ensured a flawless convergence between digital blueprints and physical site execution, even under the most demanding conditions.
The precision you witness today in the Konarak mechanical room is not just about equipment—it is the result of Strategic Relationship Management and the synchronized efforts of hundreds, all driven by a single, high-performance engineering vision.
